Preen AFV-P-2500 15-1000Hz High Performance Programmable AC Power Source
High Performance Programmable AC Power Source AFV-P-2500 15-1000Hz
Manual download link

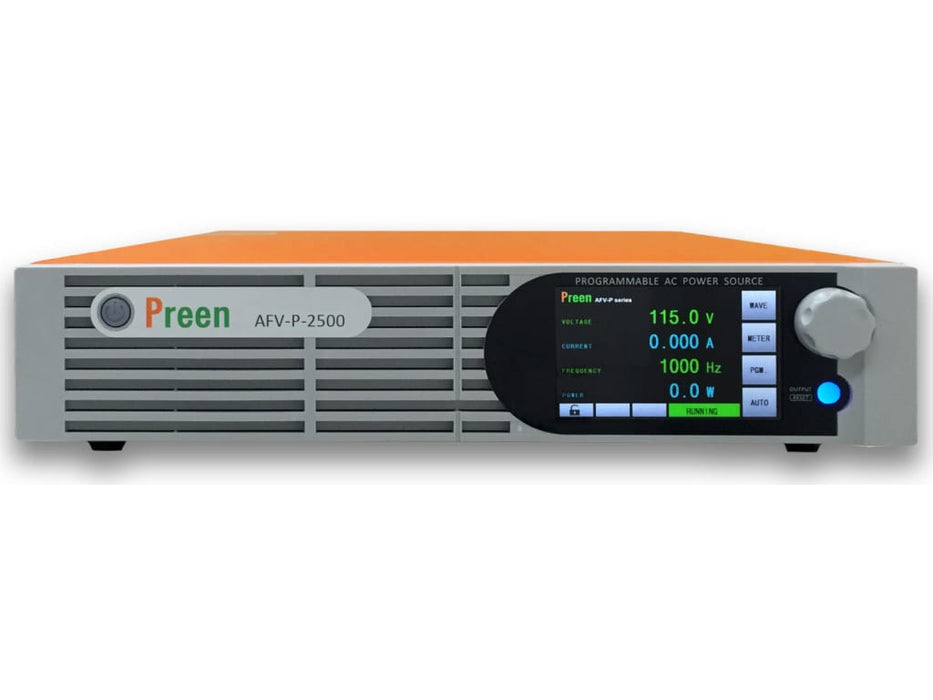

The 2U rackmount Preen AFV-P-2500 Programmable 2500VA AC Power Supply features a DC output and precision measurement capabilities to extend its versatility. This compact 2500VA power source provides clean power with THD less than 0.3% at 50/60Hz. It delivers a continuously variable output voltage of 0-301VRMS and frequency of 15-1000Hz. It is ideal for commercial, defense and aerospace test applications that range from design verification, quality assurance, ATE to mass production.
The AFV-P series provides comprehensive programmable features (step/ramp/transient) and a total of 1200 test steps in 50 built-in memory sets, as well as a transient generation functionality that allows simulations of voltage variations, surges, sags, dropouts, and frequency disturbances for simulating global AC power conditions. With advanced PWM technology, the AFV-P series can deliver up to 4.5 times peak current from its rated output, which is ideal for motor-type tests of inrush current. Users can adjust the starting and ending phase angle from 0 - 360 degrees.
Measurement features in the AFV-P series include RMS voltage, RMS current, true power, apparent power, power factor, crest factor, reactive power, etc. An intuitive 5" touch screen with an additional rotary knob control allows quick adjustments and configurations of voltage, current and frequency. The AFV-P series can also be remotely controlled via standard interfaces. Free control software and a LabVIEW driver are available for easy programming and remote operation.
- Compact and high power density: 600VA to 2500VA (2U case) and 5000VA (4U case).
- AC source with DC output extends applications to include DC testing
- Wide output voltage of 0-310VRMS; output frequency 15-1000Hz
- THD < 0.3 % when output power is under 100Hz
- Inrush current: capable of delivering up to 4.5 times of peak current.
- Start/End phase angle: define the start and end phase angle from 0° to 360°
- Current foldback feature: constant output current when output voltage varies.
- STEP and RAMP function for voltage and frequency variation tests
- TRANSIENT generation provides users an easy setup for power line disturbance (PLD) simulation.
- Set and view parameters easily via 5” touch panel or rotary knob.
- Free control software and LabVIEW driver for programming and remote control.
- High slew rate: less than 300µs for 0 to 90% output voltage
- Includes a rackmount kit
|Voltage||98~132VAC / 196~264VAC||196~264VAC or 175~235VAC|
|Frequency||47 Hz - 63 Hz|
|Phase||1Ø / 2 Wire + G|
|Voltage Ranges||0 - 155Vrms / 0 - 310Vrms, user selectable|
|Frequency||40-500Hz (opt. 15-1000Hz)|
|Frequency Resolution||0.1Hz, 1Hz at >100Hz|
|Max. Current (RMS)||5A / 2.5A||10A / 5A||20A / 10A||40A / 20A|
|Max. Current (Peak)||22.5A / 11.3A||45A / 22.5A||90A / 45A||180A / 90A|
|Total Harmonic Distortion (THD)||≦0.3% at 40-100Hz, ≦0.5% at 101-500Hz, ≦0.8% at 501-1000Hz (Resistive Load)|
|Line Regulation||± 0.1V|
|Load Regulation||≦0.07% F.S. (Resistive Load)|
|Response Time||≦ 300uS|
|Crest Factor||≧ 3|
|Inrush Current||≧ 4.5 times max. output current (r.m.s)|
|Voltage Ranges||0 - 210V / 0 – 420V|
|Max. Current||2.5A / 1.25A||5A / 2.5A||10A / 5A||20A / 10A|
|Ripple and Noise (RMS)||≦ 0.15%||≦ 0.24%|
|Voltage Range||0 - 420Vrms|
|Voltage Accuracy||±(0.2% of reading + 5 counts)|
|Frequency Range||15 - 1000Hz|
|Frequency Accuracy||±0.1Hz at 40.0 - 500Hz, ±0.2Hz at 501 - 1000Hz|
|Current Range||Hi: 1 - 12A / Lo: 0.005 - 1.2A||Hi: 2 - 24A / Lo: 0.005 - 2.4A||Hi: 0.05A - 48.00A|
|Current Accuracy||±(1% of reading + 5 counts) at 40.0 - 500Hz, ±(1% of reading + 10 counts) at 501 - 1000Hz|
|Current Resolution||Hi: 0.01A / Lo: 0.001A||Hi: 0.01A|
|Peak Current Range||0 - 45A||0 - 90A||0 - 180A|
|Peak Current Accuracy||±(1% of reading + 5 counts) at 40.0 - 500Hz, ±(1% of reading + 10 counts) at 501 - 1000Hz|
|Peak Current Resolution||0.1A|
|Power Range||Hi: 100 - 1200W / Lo: 0 - 120W||Hi: 200 - 2400W / Lo: 0 - 240W||Hi: 0 - 4800W|
|Power Accuracy||±(2% of reading + 10 counts) @ 40 - 500Hz, ±(2% of reading + 15 counts) @ 501 - 1000Hz|
|Power Resolution||Hi: 1W / Lo: 0.1W||Hi: 1W|
|Efficiency||≧ 80% at max. power|
|Protection||OVP, OCP, LVP, OPP, OTP, RCP, Fan Fail|
|Remote Interface||Standard: RS232 / RS485 / Ethernet / USB / PLC Remote In&Out, Option: GPIB / Analog Control|
|Over Current Foldback||CC Mode (Constant Current)|
|Output Sync Signal||ON, Event for Voltage or Frequency Change (Output signal 5V , BNC type)|
|Memories||50 Memories & 1200 Steps (24 Steps/Memory)|
|Operating Temperature||0℃ - 40°C|
|Dimensions (HxWxD)||89 x 442 x 450 mm||89 x 442 x 600 mm||222.5 x 442 x 600 mm|
|Weight||approx. 16 kg||approx. 20 kg||approx. 31.3 kg||approx. 70 kg|
