Preen AFV-P-5000 15-1000Hz High Performance Programmable AC Power Source

Save 6%
Original price €7.900,00
Current price €7.450,00

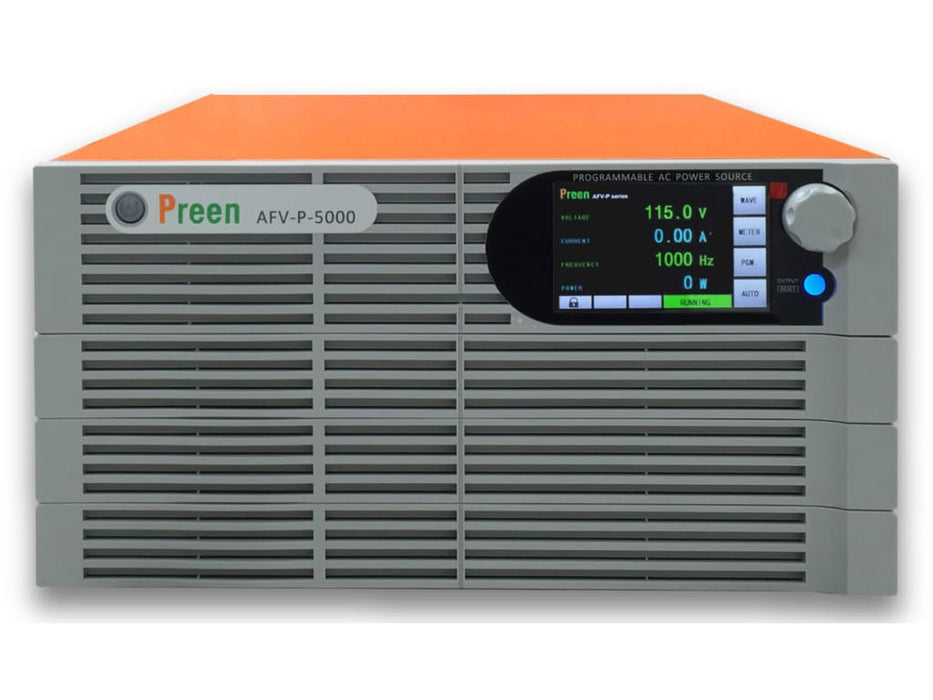

High Performance Programmable AC Power Source AFV-P-5000 15-1000Hz


The 2U rackmount Preen AFV-P-5000 Programmable 5000VA AC Power Supply features a DC output and precision measurement capabilities to extend its versatility. This compact 5000VA power source provides clean power with THD less than 0.3% at 50/60Hz.  It delivers a continuously variable output voltage of 0-301VRMS and frequency of 15-1000Hz. It is ideal for commercial, defense and aerospace test applications that range from design verification, quality assurance, ATE to mass production.

The AFV-P series provides comprehensive programmable features (step/ramp/transient) and a total of 1200 test steps in 50 built-in memory sets, as well as a transient generation functionality that allows simulations of voltage variations, surges, sags, dropouts, and frequency disturbances for simulating global AC power conditions. With advanced PWM technology, the AFV-P series can deliver up to 4.5 times peak current from its rated output, which is ideal for motor-type tests of inrush current.  Users can adjust the starting and ending phase angle from 0 - 360 degrees.
Measurement features in the AFV-P series include RMS voltage, RMS current, true power, apparent power, power factor, crest factor, reactive power, etc.  An intuitive 5" touch screen with an additional rotary knob control allows quick adjustments and configurations of voltage, current and frequency. The AFV-P series can also be remotely controlled via standard interfaces. Free control software and a LabVIEW driver are available for easy programming and remote operation.

Datasheet download link

Manual download link





Product Features

  • Compact and high power density: 600VA to 2500VA (2U case) and 5000VA (4U case).
  • AC source with DC output extends applications to include DC testing
  • Wide output voltage of 0-310VRMS; output frequency 15-1000Hz
  • THD < 0.3 % when output power is under 100Hz
  • Inrush current: capable of delivering up to 4.5 times of peak current.
  • Start/End phase angle: define the start and end phase angle from 0° to 360°
  • Current foldback feature: constant output current when output voltage varies.
  • STEP and RAMP function for voltage and frequency variation tests
  • TRANSIENT generation provides users an easy setup for power line disturbance (PLD) simulation.
  • Set and view parameters easily via 5” touch panel or rotary knob.
  • Free control software and LabVIEW driver for programming and remote control.
  • High slew rate: less than 300µs for 0 to 90% output voltage
  • Includes a rackmount kit

Specifications

Model AFV-P-600 AFV-P-1250 AFV-P-2500 AFV-P-5000
Input
Phase Single
Voltage 98~132VAC / 196~264VAC 196~264VAC or 175~235VAC
Frequency 47 Hz - 63 Hz
Max. Current 10A 20A 20A 40A
OUTPUT
Power VA 600VA 1250VA 2500VA 5000VA
W 500W 1000W 2000W 4000W
Phase 1Ø / 2 Wire + G
Voltage Ranges 0 - 155Vrms / 0 - 310Vrms, user selectable
Voltage Resolution 0.1Vrms
Frequency 40-500Hz (opt. 15-1000Hz)
Frequency Resolution 0.1Hz, 1Hz at >100Hz
Max. Current (RMS) 5A / 2.5A 10A / 5A 20A / 10A 40A / 20A
Max. Current (Peak) 22.5A / 11.3A 45A / 22.5A 90A / 45A 180A / 90A
Total Harmonic Distortion (THD) ≦0.3% at 40-100Hz, ≦0.5% at 101-500Hz, ≦0.8% at 501-1000Hz (Resistive Load)
Line Regulation ± 0.1V
Load Regulation ≦0.07% F.S. (Resistive Load)
Response Time ≦ 300uS
Crest Factor ≧ 3
Inrush Current ≧ 4.5 times max. output current (r.m.s)
DC OUTPUT
Power 300W 600W 1250W 2500W
Voltage Ranges 0 - 210V / 0 – 420V
Max. Current 2.5A / 1.25A 5A / 2.5A 10A / 5A 20A / 10A
Ripple and Noise (RMS) ≦ 0.15% ≦ 0.24%
MEASUREMENT
Voltage Range 0 - 420Vrms
Voltage Accuracy ±(0.2% of reading + 5 counts)
Voltage Resolution 0.1V
Frequency Range 15 - 1000Hz
Frequency Accuracy ±0.1Hz at 40.0 - 500Hz, ±0.2Hz at 501 - 1000Hz
Frequency Resolution 0.1Hz
Current Range Hi: 1 - 12A / Lo: 0.005 - 1.2A Hi: 2 - 24A / Lo: 0.005 - 2.4A Hi: 0.05A - 48.00A
Current Accuracy ±(1% of reading + 5 counts) at 40.0 - 500Hz, ±(1% of reading + 10 counts) at 501 - 1000Hz
Current Resolution Hi: 0.01A / Lo: 0.001A Hi: 0.01A
Peak Current Range 0 - 45A 0 - 90A 0 - 180A
Peak Current Accuracy ±(1% of reading + 5 counts) at 40.0 - 500Hz, ±(1% of reading + 10 counts) at 501 - 1000Hz
Peak Current Resolution 0.1A
Power Range Hi: 100 - 1200W / Lo: 0 - 120W Hi: 200 - 2400W / Lo: 0 - 240W Hi: 0 - 4800W
Power Accuracy ±(2% of reading + 10 counts) @ 40 - 500Hz, ±(2% of reading + 15 counts) @ 501 - 1000Hz
Power Resolution Hi: 1W / Lo: 0.1W Hi: 1W
GENERAL
Efficiency ≧ 80% at max. power
Protection OVP, OCP, LVP, OPP, OTP, RCP, Fan Fail
Remote Interface Standard: RS232 / RS485 / Ethernet / USB / PLC Remote In&Out, Option: GPIB / Analog Control
Over Current Foldback CC Mode (Constant Current)
Output Sync Signal ON, Event for Voltage or Frequency Change (Output signal 5V , BNC type)
Memories 50 Memories & 1200 Steps (24 Steps/Memory)
Operating Temperature 0℃ - 40°C
Dimensions (HxWxD) 89 x 442 x 450 mm 89 x 442 x 600 mm 222.5 x 442 x 600 mm
Weight approx. 16 kg approx. 20 kg approx. 31.3 kg approx. 70 kg
